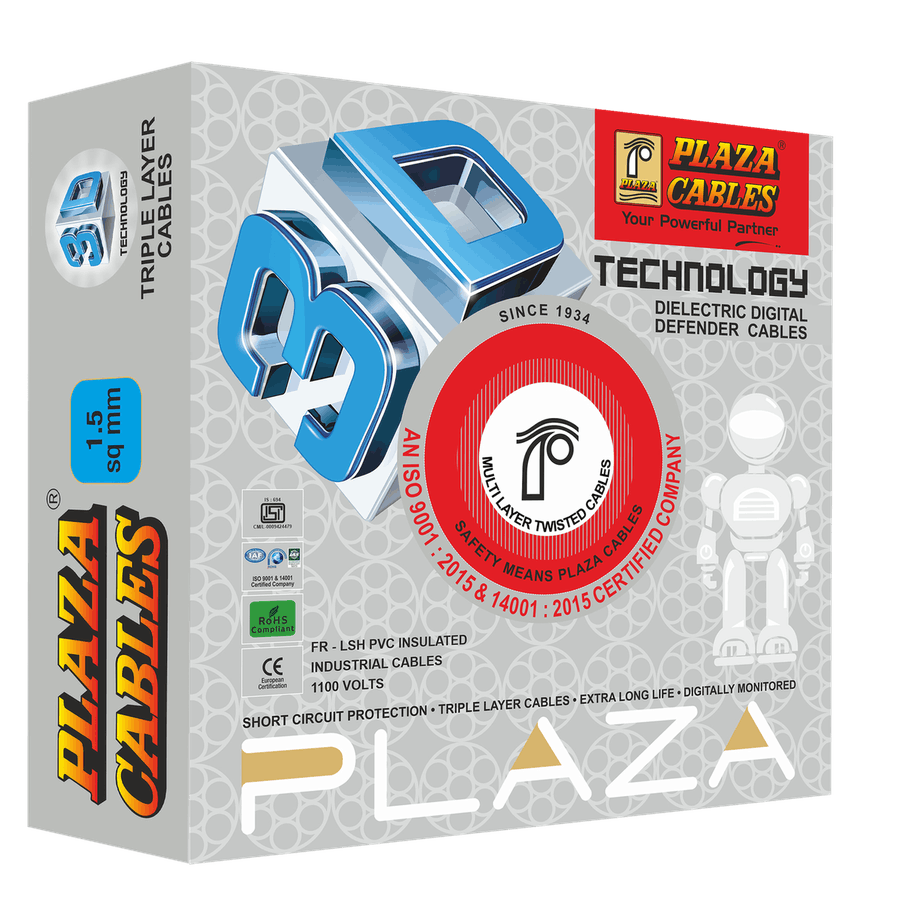

Triple Layer Insulated 3D Wire
Engineered with advanced multi-layer insulation and high-conductivity copper for enhanced fire protection, reduced power loss and reliable performance in high-rise and commercial buildings.
Triple Layer Insulated 3D Wire
When it comes to powering modern buildings safely, Plaza Triple Layer Insulated 3D Wires stand in a class of their own. Built with high-conductivity copper and advanced multi-layer insulation, they deliver efficient power transmission while significantly reducing the risk of fire hazards. Whether it's a soaring high-rise, a bustling corporate office, or a busy industrial facility, these wires are engineered to handle it all with ease. As buildings grow taller and more complex, reliable wiring isn't just a technical requirement - it's a matter of safety for everyone inside. Plaza's wiring solutions are crafted to meet the most stringent fire protection and high-current standards, giving builders, engineers, and occupants the confidence they deserve.
Specifications Details
| STANDARDS | IS:694, IS: 8130, IS: 5831, IEC 60227, BS EN 50525, IEC: 332-1, ASTM- 2843 & ASTM- 2863 |
|---|---|
| CONDUCTOR | Electrolytic Grade, bright annealed bare copper with more than 100% conductivity conforming to IS:8130 |
| INSULATION | The conductors are insulated with FR- LSH compound, which has an Oxygen Index of 31.5%-32% which increases its efficiency in firefighting. In the case of fire, conventional PVC insulated wires give out thick, black smoke and toxic Hydrochloric Acid gas, which reduces the visibility and makes rescue operations difficult. In contrast, Extra Shield FR-LSH wires give out not only very little smoke or toxic gases. but also restricts the spread of fire. |
- Fire-prone and densely populated areas like hospitals, schools, malls, and chemical plants
- Multi-storied high-rise buildings (hotels, banks, factories, commercial complexes, theatres, residential apartments).
- Wiring in fire- or explosion-prone areas.
- Chemical factories and industrial environments.
- Control rooms, data centers, and emergency lighting systems.
- Theatres, malls, and other commercial complexes
- India’s first 3D technology
- Triple-layer insulated wire with multilayer conductor
- Minimizes power loss during high-current transmission
- 99.97% pure copper with high conductivity (102% IACS)
- Low smoke or toxic gases at the time for fire & also restricts the spread of fire.
- Lead free PVC
- RoHS compliant
- REACH compliant
- Rodent protection
Specifications
| Nominal Cross Sectional area of conductor | Number/ Nom. Dia of cond. Strands | Thickness of Insulation (Nom) | Overall Diameter (Max.) | Current Carrying Capacity, 2 Cables Single Phase | Max. DC Conductor Resistance per KM at 20⁰C |
|---|---|---|---|---|---|
| sq. mm. | mm | mm | mm | Amps | Ohms |
| 1.00 | 19/0.260 | 0.70 | 3.2 | 14 | 18.10 |
